VoltGo LiFePO4 IP67 Golf Cart Battery
Frustrated with unreliable battery performance on the golf course or during heavy-duty AGV use? The VoltGo VLEG5120C Golf Cart Battery is engineered to eliminate those concerns—offering longer run times, zero maintenance, and dependable performance even in extreme weather. Whether you’re teeing off at sunrise in winter or navigating rugged terrain, this battery is built to keep your vehicle moving without the hassle of traditional lead-acid maintenance.

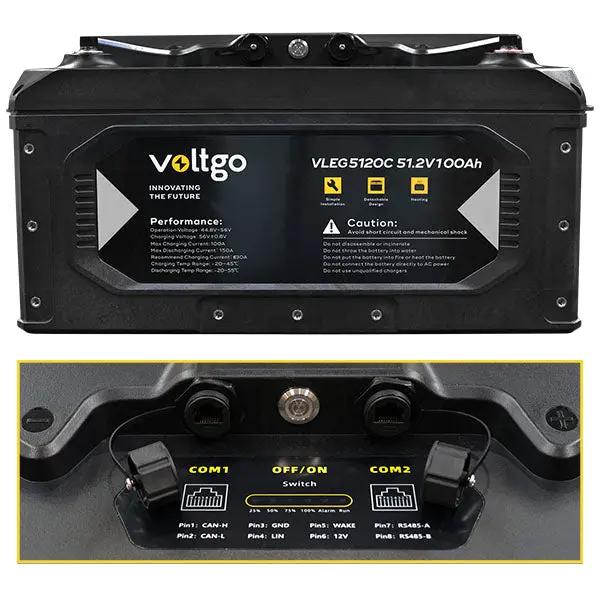

VoltGo VLEG5120C Golf Cart Battery
The VoltGo VLEG5120C is a high-capacity 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) battery module, purpose-built for golf carts and AGV systems. Housed in a rugged flame-retardant ABS casing and rated to IP67, this battery resists dust, water, and physical wear for reliable performance across all environments. Unique integrated mounting plates make it simple to install and secure, while Bluetooth functionality lets you monitor real-time battery data straight from your smart device. Optional display panel support is available with the VLEG-BMV KIT.
Cold weather? No problem. With internal heating technology that activates when connected to external power, the battery maintains safe charging temperatures even down to -20°C. Designed with a golf cart-specific Battery Management System (BMS), it handles high in-rush current from regenerative braking with ease. Sold as a single unit, the VoltGo VLEG5120C can also be expanded into systems of up to 16 in parallel, giving you the flexibility to extend runtime and performance as your needs grow.
Specifications
| Voltage (V) | 51.2V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 5120Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 150A |
| Discharge cut-off voltage | 44.8V |
| Charge Voltage | 44.8V – 56V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +45°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature |
| Ingress Rating | IP67 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES – Up to 16P |
| Case structure | UL94 V-0 flame retardant serviceable ABS Case design |
| Compliances | UL1973, UN38.3 |
| Warranty | 5 years |
