Procell Lithium Coin Intense 2032 Industrial Batteries

Procell Lithium Coin Intense 2032 Industrial Batteries

SKU: PX2032-BP5

Procell Lithium Coin Intense 2032 Battery Description

Procell Lithium Coin Intense 2032 industrial batteries are designed to deliver reliable and safe power in professional devices. Available in 2025 and 2016 sizes as well.

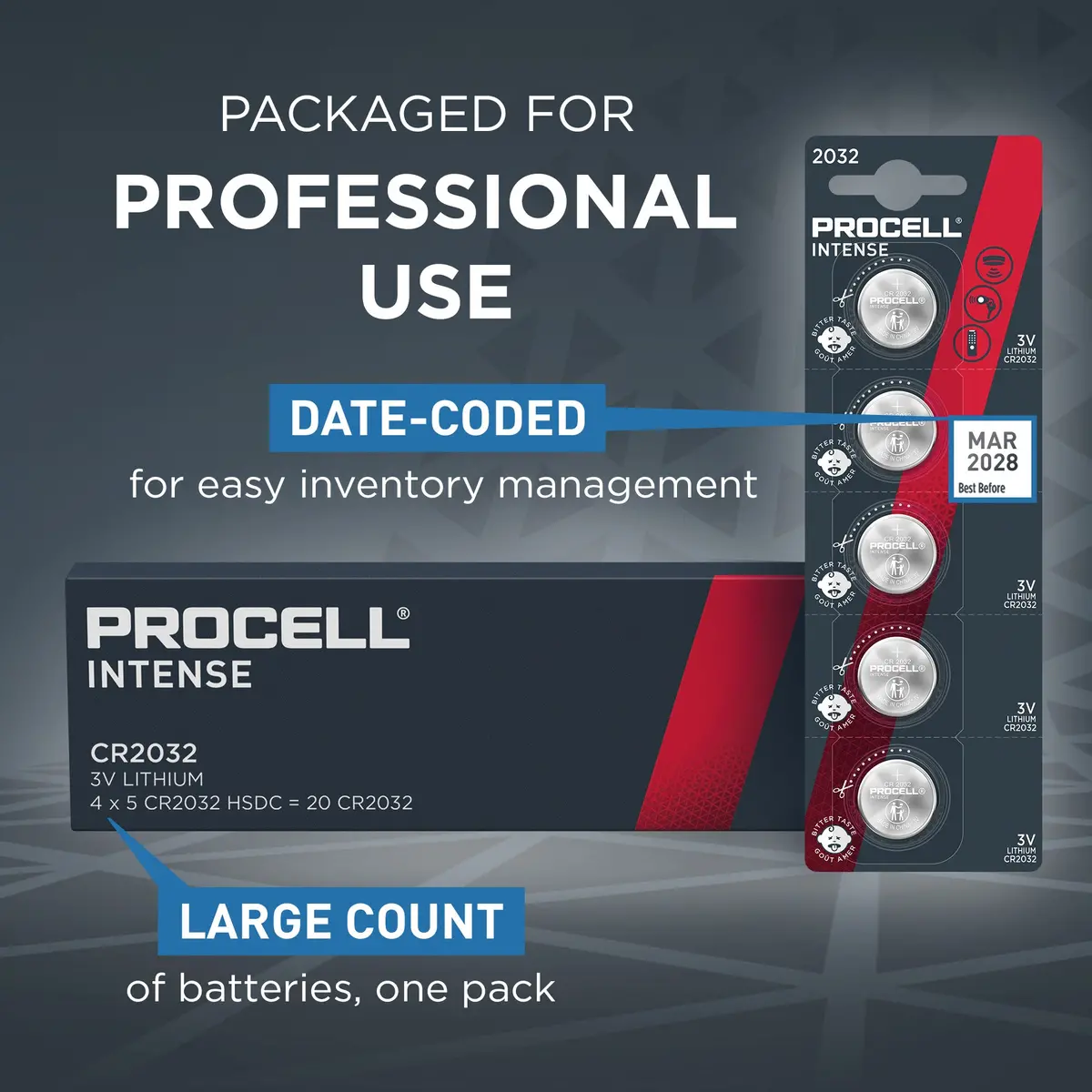

To prevent accidental ingestion by children, Procell has developed tamper-proof packs with double blister so that it is impossible for a child to open without scissors and a bitter taste layer is applied on the back of the cell to discourage swallowing.

Features:

• High Cell Capacity & High Energy.
• High voltage response, stable during most of the lifetime of the application.
• Reliable Performance.
• Child-Safe Markings.
• Wide operating temperature range (-30°C to +70°C).
• Low self-discharge with long operating life (<1% after 1 year of storage at +20 °C).
• Excellent resistance to corrosion.
• Designed to meet all major quality, safety, and environment standards:
  • Safety: IEC 60086-4
  • Transport: UN 38.3
  • EU Battery Regulation and EU REACH compliance
  • Quality: ISO 9001, Duracell World Class Continuous Program

Specifications:

• Nominal capacity (15k Ohm Cont., 2.0 V cut-off): 260 mAh
• Minimum Open Circuit Voltage (OCV): 3.0 V
• Standard Continuous Discharge Current: 0.6 mA
• Maximum Continuous Discharge Current: 3 mA
• Maximum Pulse Discharge Current at 1 sec: 50 mA
• Nominal Energy: 745 mWh
• AC Impedance @ 1kHz: 9 Ohm
• Typical weight: 3.0 g (0.11 oz.)
• Li metal content: approx. 0.08 g
• Operating temperature range: -30°C to 70°C (-22°F to 158°F)
• Recommended Storage: Storage area should be clean, cool (preferably not exceeding +30°C), dry, and ventilated; 5°C to 30°C (41°F to 86°F)
• Storage Humidity: <70%

Typical Applications:

• Medical devices
• Security Devices
• Wireless Sensors
• Fitness Devices
• Key-Fobs & Trackers
• Watches & Fitness Devices
• Additional Fitness Devices
